Signal Booster Tri-Band

Tested to boost the voice and data calls and compatible with all UK mobile voice, text and 3G data, (including Vodafone, O2, EE, and 3 Network) as well as EE 4G data

Our MR Tri-Band is the most unique repater kit on the market. This repeater kit is compatible with absolutely all GSM voice and all high speed 3G data networks and has been tested on and proven effective in boosting Vodafone, O2, EE and 3 Network voice and 3G data signal. This booster is also compatible with EE high speed 4G data networks. The MR Tri-Band Repeater Kit is compatible with all UK and European mobile phone voice and data networks and effectively provides a strong and reliable signal in places with poor reception. The MR Tri-Band Kit comes with everything you need to boost coverage in your area! This product is simple to install, comes with 100% free technical support and is posted from the UK.

• TRI-Band GSM 900/1800 and 3G
• 55dB gain
• Coverage up to 250 sq m
• Simple Installation
• Supports 20 simultaneous users
• All UK GSM voice and all 3G networks, EE 4G networks
• Money Back Guarantee

Tri-Band phone repeaters system is designed for universal mobile coverage on the go. The MR Tri-Band enhances signal strength to your mobile phone or broadband 3G dongle by capturing the weak signal through an external aerial antenna that provides input to a Tri-Band amplifier compatible with all GSM Voice and all data networks. These Tri-Band boosters are our most versatile solutions and provide coverage for all UK and European networks within the convenience of a single booster unit. Like all of our repeater kits the Tri-Band improves weak signal that is already in the area and thus will work on all mobile devices including the latest Apple iPhone and Samsung smartphones and tablets.

Installation of the MR Tri-Band repeater is simple and takes minutes. Just mount the external aerial antenna and connect to the repeater input port. At the output of the repeater connect the indoor coverage antenna then connect the power. For best performance the external aerial should be mounted in the location with the strongest signal strength. The effective coverage area of the unit depends on the input signal provided from this antenna. The MR Tri-Band repeater kit comes complete with:

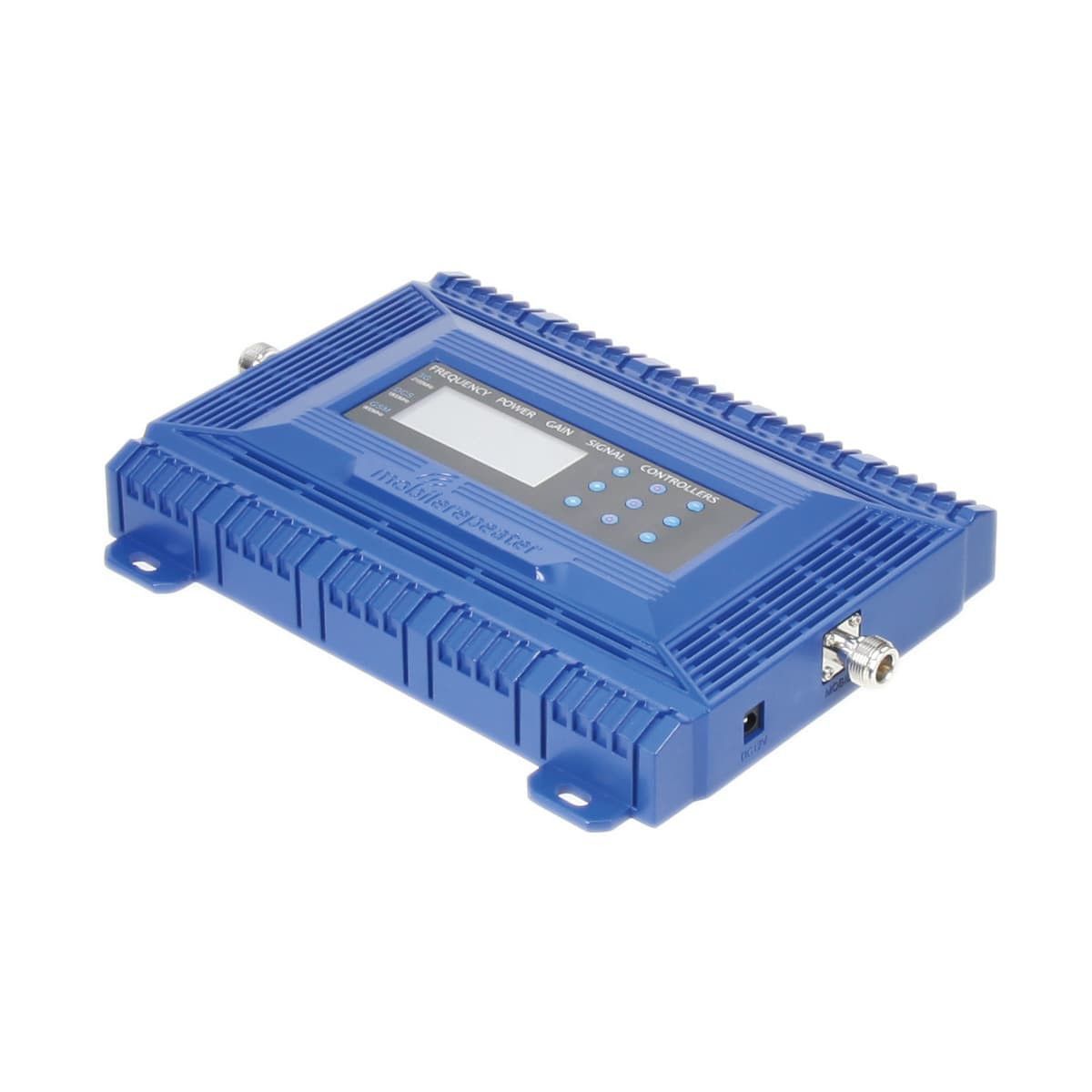

• MR Tri-Band Repeater Amplifier
• External Tri-Band signal aerial
• Indoor high gain tri-band amplifier panel antenna
• 10 m coax to connect to repeater
• AC/DC power supply
• Easy to follow installation manual

If you have any questions about this or other Mobile Repeater products please feel free to Contact Us. For technical specifications on this model please see below.

Technical Specifications

Gain ( dB) Uplink Gp≥55, Downlink Gp≥60
Pass band ripple ≤5dB
Guard band rejection (BW-60dB)≤42MHz, (BW-70dB)≤45MHz
I/O impedance 50Ω/N connector
I/O return loss ≤-8dB
Export power (Po) ≥23dBm
Intermodulation Attenuation: ≤-40dBc (Po=13dBm)
Transmission Delay ≤0.5μs
Ambient temperature -10℃～50℃
Power supply AC110～220V + - 10%
Connector Mode N/K for both in-out antenna socket
Diamension 235 x 178 x 25 mm
